Leaded

DL Leaded Cored Solder Wire
Alloy Melting Temperature Flux Content
Sn60/Pb40 183°C-190°C 1.1% and 2%
Sn63/Pb37 183°C Eutectic 1.1% and 2%
Sn50/Pb50 183°C-216°C 1.1% and 2%
Sn62/Pb36/Ag2 179°C Eutectic 1.1% and 2%
DL NO CLEAN FLUX 810

DL Leaded Cored solder wire

Model Name : NC 1205 Flux cored wire

PRODUCT DESCRIPTION:

DL No-Clean 1205 Flux for cored solder wire was developed to provide superior wetting performance for hand soldering in the electronics industry. The chemistry have been specifically designed for the best result in mildly activated rosin fluxes. The use of DL No-Clean 1205 Flux results in an extremely clear post-soldering residue without cleaning. The unique chemistry in DL No-Clean 1205 was also designed to reduce smoke and spattering common to most rosin core fluxes. DL No-Clean 1205 is designed for both leaded and leadfree soldering application. DL No-Clean 1205 is classified as ROL0 per J-STD-004.

Alloy Flux Flux % Lead Content Halogen Content Description Melting Temperature Available Dia Available Packing

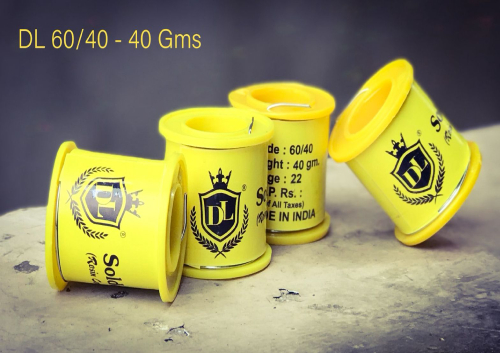

Sn60/Pb40 NC 1205W 2.0% Leaded Contains Halogen DL Sn60Pb40 1205W Solder wire Flux 2% 183°C-190 °C 9 mm to 0.38 mm 40 Gms/50 Gms/100 Gms/250 Gms/500 Gms
Sn60/Pb40 NC 1205B 2.0% Leaded Contains Halogen DL Sn60Pb40 1205B Solder wire Flux 2% 183°C-190 °C 9 mm to 0.38 mm 40 Gms/50 Gms/100 Gms/250 Gms/500 Gms
Sn60/Pb40 NC 1205HF 2.0% Leaded Halogen Free DL Sn60Pb40 1205W HF Solder wire Flux 2% 183°C-190 °C 9 mm to 0.38 mm 40 Gms/50 Gms/100 Gms/250 Gms/500 Gms
Sn60/Pb40 NC 1205R 1.1% Leaded Contains Halogen DL Sn60Pb40 1205R Solder wire Flux 1.1% 183°C-190 °C 9 mm to 0.38 mm 40 Gms/50 Gms/100 Gms/250 Gms/500 Gms
DL NO CLEAN FLUX 810

DL Leaded Cored solder wire

Model Name : NC 1205 Flux cored wire

PRODUCT DESCRIPTION:

DL No-Clean 1205 Flux for cored solder wire was developed to provide superior wetting performance for hand soldering in the electronics industry. The chemistry have been specifically designed for the best result in mildly activated rosin fluxes. The use of DL No-Clean 1205 Flux results in an extremely clear post-soldering residue without cleaning. The unique chemistry in DL No-Clean 1205 was also designed to reduce smoke and spattering common to most rosin core fluxes. DL No-Clean 1205 is designed for both leaded and leadfree soldering application. DL No-Clean 1205 is classified as ROL0 per J-STD-004.

Alloy Flux Flux % Lead Content Halogen Content Description Melting Temperature Available Dia Available Packing

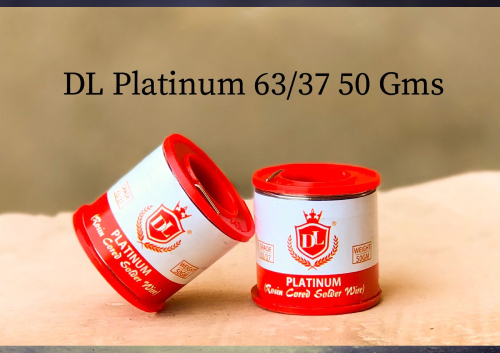

Sn63/Pb37 NC 1205W 2.0% Leaded Contains Halogen DL Sn63Pb37 1205W Solder wire Flux 2% 183°C Eutectic 9 mm to 0.38 mm 50 Gms/100 Gms/250 Gms/500 Gms
Sn63/Pb37 NC 1205B 2.0% Leaded Contains Halogen DL Sn63Pb37 1205B Solder wire Flux 2% 183°C Eutectic 9 mm to 0.38 mm 50 Gms/100 Gms/250 Gms/500 Gms
Sn63/Pb37 NC 1205HF 2.0% Leaded Halogen Free DL Sn63Pb37 1205W HF Solder wire Flux 2% 183°C Eutectic 9 mm to 0.38 mm 50 Gms/100 Gms/250 Gms/500 Gms
Sn63/Pb37 NC 1205R 1.1% Leaded Contains Halogen DL Sn63Pb37 1205R Solder wire Flux 1.1% 183°C Eutectic 9 mm to 0.38 mm 50 Gms/100 Gms/250 Gms/500 Gms
DL NO CLEAN FLUX 810

DL Leaded Cored solder wire

Model Name : NC 1205 Flux cored wire

PRODUCT DESCRIPTION:

DL No-Clean 1205 Flux for cored solder wire was developed to provide superior wetting performance for hand soldering in the electronics industry. The chemistry have been specifically designed for the best result in mildly activated rosin fluxes. The use of DL No-Clean 1205 Flux results in an extremely clear post-soldering residue without cleaning. The unique chemistry in DL No-Clean 1205 was also designed to reduce smoke and spattering common to most rosin core fluxes. DL No-Clean 1205 is designed for both leaded and leadfree soldering application. DL No-Clean 1205 is classified as ROL0 per J-STD-004.

Alloy Flux Flux % Lead Content Halogen Content Description Melting Temperature Available Dia Available Packing
Sn50/Pb50 NC 1205W 2.0% Leaded Contains Halogen DL Sn50Pb50 1205W Solder wire Flux 2% 183°C-216°C 9 mm to 0.38 mm 50 Gms/100 Gms/250 Gms/500 Gms
Sn50/Pb50 NC 1205B 2.0% Leaded Contains Halogen DL Sn50Pb50 1205B Solder wire Flux 2% 183°C-216°C 9 mm to 0.38 mm 50 Gms/100 Gms/250 Gms/500 Gms
Sn50/Pb50 NC 1205HF 2.0% Leaded Halogen Free DL Sn50Pb50 1205W HF Solder wire Flux 2% 183°C-216°C 9 mm to 0.38 mm 50 Gms/100 Gms/250 Gms/500 Gms
Sn50/Pb50 NC 1205R 1.1% Leaded Contains Halogen DL Sn50Pb50 1205R Solder wire Flux 1.1% 183°C-216°C 9 mm to 0.38 mm 50 Gms/100 Gms/250 Gms/500 Gms
DL NO CLEAN FLUX 810

DL Leaded Cored solder wire

Model Name : NC 1205 Flux cored wire

PRODUCT DESCRIPTION:

DL No-Clean 1205 Flux for cored solder wire was developed to provide superior wetting performance for hand soldering in the electronics industry. The chemistry have been specifically designed for the best result in mildly activated rosin fluxes. The use of DL No-Clean 1205 Flux results in an extremely clear post-soldering residue without cleaning. The unique chemistry in DL No-Clean 1205 was also designed to reduce smoke and spattering common to most rosin core fluxes. DL No-Clean 1205 is designed for both leaded and leadfree soldering application. DL No-Clean 1205 is classified as ROL0 per J-STD-004.

Alloy Flux Flux % Lead Content Halogen Content Description Melting Temperature Available Dia Available Packing

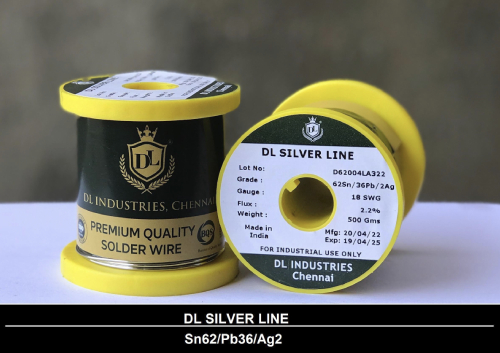

Sn62/Pb36/Ag2 NC 1205W 2.0% Leaded Contains Halogen DL Sn62Pb36Ag2 1205W Solder wire Flux 2% 179°C Eutectic 9 mm to 0.38 mm 500 Gms
Sn62/Pb36/Ag2 NC 1205B 2.0% Leaded Contains Halogen DL Sn62Pb36Ag2 1205B Solder wire Flux 2% 179°C Eutectic 9 mm to 0.38 mm 500 Gms
Sn62/Pb36/Ag2 NC 1205HF 2.0% Leaded Halogen Free DL Sn62Pb36Ag2 1205W HF Solder wire Flux 2% 179°C Eutectic 9 mm to 0.38 mm 500 Gms
Sn62/Pb36/Ag2 NC 1205R 1.1% Leaded Contains Halogen DL Sn62Pb36Ag2 1205R Solder wire Flux 1.1% 179°C Eutectic 9 mm to 0.38 mm 500 Gms
